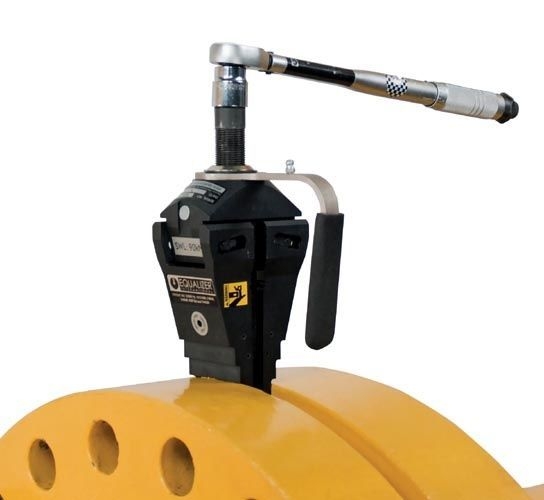

Mechanical flange spreading wedge SW14TM

This innovative spreading wedge is applicable for use on small to medium sized flanges and is mechanically operated using the supplied torque- wrench.

TOOL CAPABILITIES

SPREADING FORCE

with 175N.m (130ft.lb) torque applied:

• 120kN (12T) 1st step

• 140kN (14T) 4th step

SPREADING DISTANCE

• 6.0mm – 40.0mm (0.24” - 1.6”) using only 1st step

• 6.0mm – 87.5mm (0.24” - 3.4”) using 4 steps

(without stepped blocks)

• 48.5mm – 103.5mm (1.9” - 4.1”) using 2 steps

(with stepped blocks)

TOOL WEIGHT

• 6.2kg (13.7lb)
